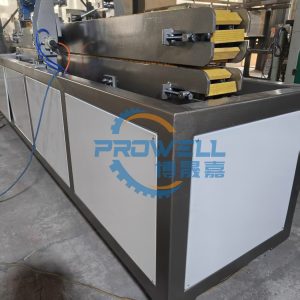

3500mm Effective Traction Length | Enhanced Stability & Productivity
Premium Traction System for Superior FRP Anchor Rod Quality
✅ 3500mm Effective Traction Length: Ensures extended resin curing time and uniform fiber-resin distribution, reducing internal voids (<0.5%) and boosting tensile strength by 15-20% (tested per ASTM D3916).

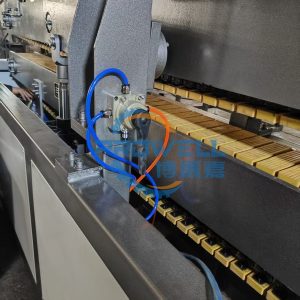

✅ Rubber Block Grip Design: Anti-slip traction rollers with high-friction rubber blocks minimize fiber slippage, achieving ±0.3mm dimensional accuracy (ISO 10406-2 compliant).
✅ Dual 2.2kW Motor Drive: Synchronized dual motors deliver stable pulling force (5-50kN adjustable), eliminating speed fluctuations for 24/7 continuous production.
Premium Traction System for Superior FRP Anchor Rod Quality
✅ 3500mm Effective Traction Length: Ensures extended resin curing time and uniform fiber-resin distribution, reducing internal voids (<0.5%) and boosting tensile strength by 15-20% (tested per ASTM D3916).
✅ Rubber Block Grip Design: Anti-slip traction rollers with high-friction rubber blocks minimize fiber slippage, achieving ±0.3mm dimensional accuracy (ISO 10406-2 compliant).
✅ Dual 2.2kW Motor Drive: Synchronized dual motors deliver stable pulling force (5-50kN adjustable), eliminating speed fluctuations for 24/7 continuous production.
Key Features & Technical Specifications
| Parameter | Specification |
|---|---|
| Traction Length | 3500mm (3.5m) |

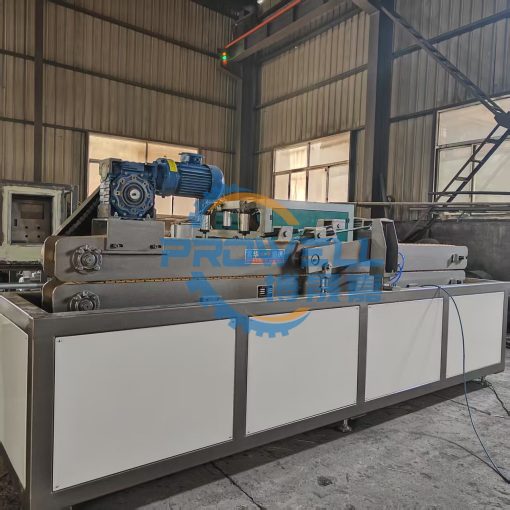

| Drive System | Dual 2.2kW Motors + Gear Reducer |
| Traction Force | 5-50kN (Adjustable via PLC) |
| Speed Range | 0.5-3 m/min (Precision Control) |

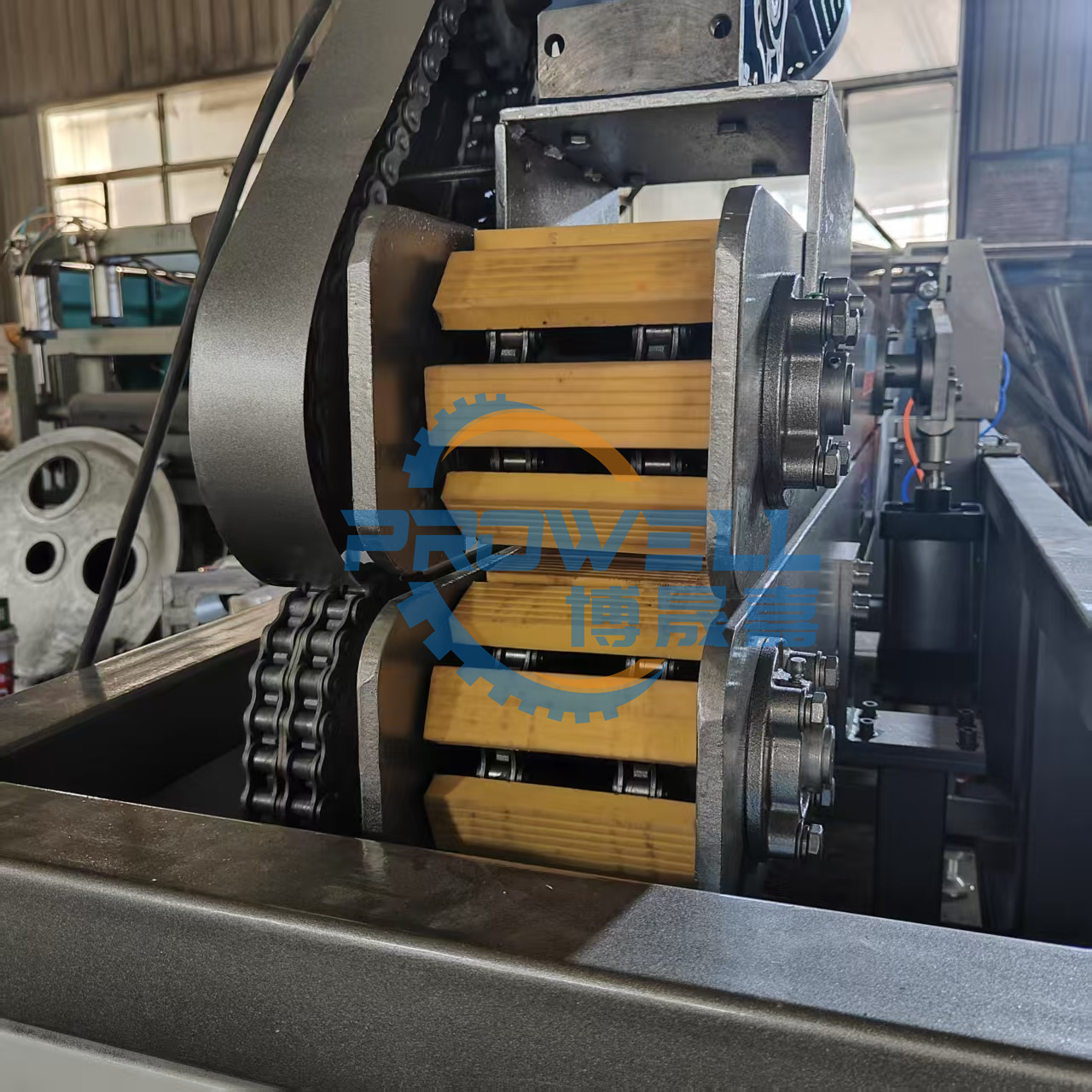

| Grip Type | Durable Rubber Block Clamps (Replaceable) |
| Voltage | 380V/ 50HZ/ 3 P ( |
| Compliance | CE, ISO 9001 Certified |
Why Choose Our Traction Machine?
1. Unmatched Stability
Dual Motor Synchronization: Balances load distribution, reducing vibration by 40% compared to single-motor systems.
Heavy-Duty Frame: Reinforced steel construction withstands high tension forces, ensuring longevity in harsh environments.
2. Boost Production Efficiency
Fast Mold Switching: Pre-set traction profiles (saved in PLC) cut setup time by 50% for multi-product lines.
Energy Saving: Intelligent power management reduces energy consumption by 25% vs. conventional systems.
3. Elevate Product Quality
Zero-Slip Traction: Rubber block clamps maintain consistent fiber tension, eliminating surface defects (waves, cracks).
Extended Curing Zone: 3500mm traction length allows optimal resin flow, enhancing interlaminar shear strength by 18%.
Ideal for
GFRP/FRP Rebar: Φ12mm to Φ32mm anchor rods, threaded bars, and ribbed profiles.
High-Speed Lines: Compatible with pultrusion speeds up to 3 m/min without quality loss.
Harsh Environments: Mining, tunnel engineering, and marine applications.
Client Testimonials
“Since upgrading to this 3500mm traction system, our FRP rod reject rate dropped from 3% to 0.5%, and output increased by 35%.”
– From Our Customer
